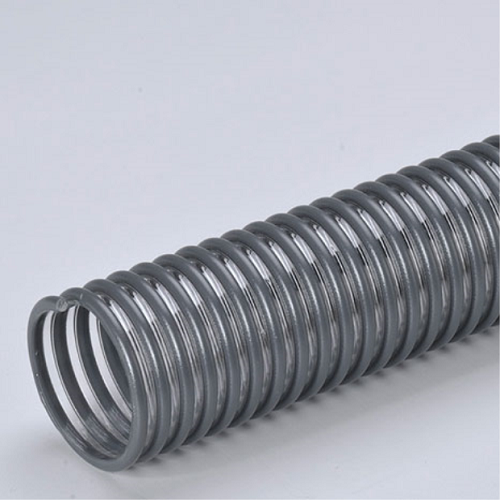

EOLO PUP ESTERE 轻磨损软管
颜色：透明
温度：-40 °C +80 °C
应用：广泛应用于传输磨损性物料，粉末、颗粒、木片、纸屑、织物纤维等，特别适用于传输塑料颗粒等。
技术特性：聚酯型聚氨酯材质，深灰色防震硬质PVC螺旋加强。
壁厚范围：0.48至1.0毫米
内壁完全光滑
机械特性卓越，轻巧、柔韧，易弯曲，耐磨，耐矿物油和多种化学品。
不含卤素
不含邻苯二甲酸盐
可定制带铜线版本，软管两端铜线接地可排静电。
标准：符合TRB S 2153规定，RoHS 2011/65/EC指令，REACH Regulation (1907/2006)法规

Tubo trasparente in poliuretano base estere, con spirale di rinforzo in PVC rigido antiurto di color grigio scuro; superficie interna perfettamente liscia, esterno corrugato; notevole resistenza all’abrasione e alla flessione. Spessore di parete da 0,8 mm a 1,00 mm. Versione antistatica con cordicella di rame su richiesta.
• Trasporto di trucioli e granulati abrasivi; industria delle materie plastiche, ceramica, industria della lavorazione del legno.
Transparent ester based Polyurethane hose, reinforced with a dark grey anti-shock PVC spiral.
Completely smooth bore, corrugated outside; really good resistance to abrasion and torsion. Wall thickness from 0,8 mm to 1,0 mm. Antistatic version with copper wire on request.
• Suction and transport of abrasive media such as powders, pellets, granulates, fibres and dust. It finds optimal application in the plastic, woodworking and ceramic industries and when a very good abrasion resistance is required.

内径毫米	壁厚毫米	重量	耐负压mH2O		弯曲半径	长度米
30	0，8	250	100		3，5	30
32	0，8	260	110		3	30
35	0，8	290	120		3	30
38，1	0，8	310	130		3	30
40	1，0	360	140		3	30
45	1，0	450	160		3	30
50，8	1，0	560	175		3	30
60	1，0	650	200		3	30
63，5	1，0	690	230		3	30
65	1，0	700	230		3	30
70	1，0	760	250		3	30
76，2	1，0	830	270		2，5	30
80	1，0	910	290		2，5	30
90	1，0	1080	360		2，5	30
100	1，0	1260	400		2，5	30
102	1，0	1290	400		2，5	30
110	1，0	1400	440		2，5	30
120	1，0	1520	470		2，5	30
127	1，0	1610	500		2，5	30
130	1，0	1640	520		2，5	30
140	1，0	1810	570		2	30
151，5	1，0	2010	600		2	20
152，8	1，0	2030	600		2	20
