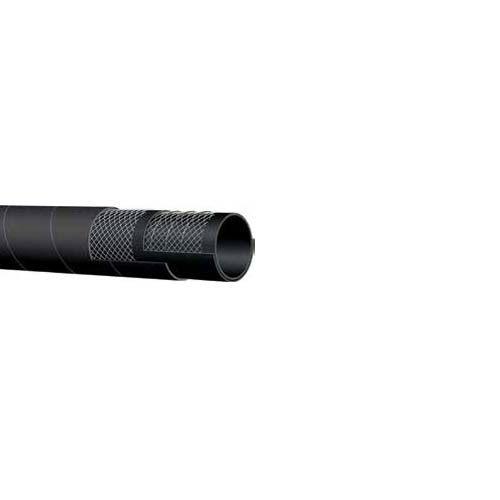

605AA燃油吸排管 10bar（150psi）
优于 SAE 100R4
SAE J2006/R2-ISO 13363/2/A
内胶层：黑色导电 NBR
加强层：高强度纤维线并嵌有螺旋钢丝
外胶层：黑色CR-耐磨损、耐臭氧、耐烃类化合物
应用：燃油吸排。特为罐式车和一般工业用途而设计也适用于船舶湿式排气及与舱底泵的连接
安全系数：≤127mm 3：1 ≥133mm 2，5：1
温度范围：-30 °C +80 °C (-22 °F +176 °F)
Fuel-oil S&D 10 bar (150 psi)
exceed SAE 100R4 - SAE J2006/R2 - ISO
13363/2/A+B
Tube: black conductive NBR.
Reinforcement: high tensile textile cords with embedded steel helix wire.
Cover: black CR - abrasion, ozone and hydrocarbon resistant.
Application: fuel and oil suction and delivery. Specially designed for tank truck and general industrial applications. Also suitable for marine wet exhaust and bilge pump connection.
Constant operation: -30 °C +80 °C (-22 °F +176 °F)
| 内径毫米 | 壁厚毫米 | 长度米 | 工作压力 bar | 最小弯曲半径 | 重量 | |
| 19 | 5.5 | 40 | 10 | 76 | 0590 | |
| 25 | 5.5 | 40 | 10 | 100 | 0750 | |
| 30 | 5.5 | 40 | 10 | 120 | 0890 | |
| 32 | 5.5 | 40 | 10 | 128 | 0940 | |
| 35 | 5.5 | 40 | 10 | 140 | 1020 | |
| 38 | 5.5 | 40 | 10 | 152 | 1020 | |
| 40 | 5.5 | 40 | 10 | 160 | 1140 | |
| 42 | 5.5 | 40 | 10 | 168 | 1190 | |
| 45 | 5.5 | 40 | 10 | 180 | 1260 | |
| 48 | 5.5 | 40 | 10 | 192 | 1330 | |
| 51 | 5.5 | 40 | 10 | 204 | 1410 | |
| 57 | 5.5 | 40 | 10 | 228 | 1570 | |
| 60 | 6.5 | 40 | 10 | 240 | 1980 | |
| 63 | 6.5 | 40 | 10 | 252 | 2060 | |
| 70 | 6.5 | 40 | 10 | 280 | 2300 | |
| 76 | 6.5 | 40 | 10 | 304 | 2470 | |
| 80 | 7.0 | 40 | 10 | 320 | 2650 | |
| 90 | 7.0 | 40 | 10 | 360 | 3090 | |
| 102 | 7.0 | 40 | 10 | 408 | 3440 | |
| 110 | 7.0 | 40 | 10 | 440 | 4150 | |
| 115 | 7.0 | 40 | 10 | 460 | 4320 | |
| 120 | 9.0 | 40 | 10 | 480 | 5530 | |
| 127 | 9.0 | 40 | 10 | 508 | 5810 | |
| 133 | 9.0 | 40 | 10 | 532 | 6050 | |
| 152 | 9.0 | 40 | 10 | 608 | 7230 | |
| 203 | 11 | 40 | 10 | 812 | 11470 | |
