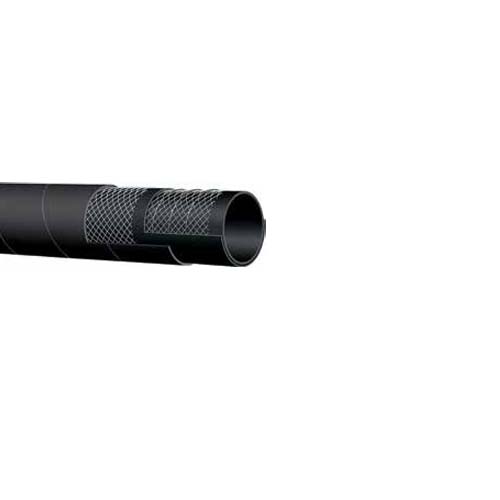

202AA 一般用途吸排水管 10bar（150 psi）-EPDM
内胶层：黑色导电EPDM
加强层：高强度纤维线并嵌有螺旋钢丝
外胶层：黑色导电EPDM-耐磨损、耐臭氧
应用：吸水和排水，也适用于一般工业，农业的中性化学品和化肥的应用
安全系数：≤127mm 3：1，≥152mm 2.5：1
温度范围： -40 °C +100 °C (-40 °F +212 °F) General purpose S&D 10 bar (150 psi) - EPDM
Tube: black conductive EPDM.
Reinforcement: high tensile textile cords with embedded steel helix wire.
Cover: black conductive EPDM - abrasion and ozone resistant.
Application: water suction and delivery. Also suitable for mild chemicals and fertilizers in general industrial and agricultural applications.
Constant operation: -40 °C +100 °C (-40 °F +212 °F) depending on conveyed chemical
| 内径毫米 | 壁厚毫米 | 长度米 | 工作压力 bar | 最小弯曲半径 | 重量 | |
| 25 | 5.5 | 40 | 10 | 100 | 730 | |
| 30 | 5.5 | 40 | 10 | 120 | 820 | |
| 32 | 5.5 | 40 | 10 | 128 | 860 | |
| 38 | 5.5 | 40 | 10 | 152 | 1000 | |
| 40 | 5.5 | 40 | 10 | 160 | 1050 | |
| 45 | 5.5 | 40 | 10 | 180 | 1170 | |
| 51 | 5.5 | 40 | 10 | 204 | 1300 | |
| 60 | 6.5 | 40 | 10 | 240 | 2000 | |
| 63 | 6.5 | 40 | 10 | 252 | 2090 | |
| 70 | 6.5 | 40 | 10 | 280 | 2330 | |
| 76 | 6.5 | 40 | 10 | 304 | 2500 | |
| 80 | 6.5 | 40 | 10 | 320 | 2680 | |
| 90 | 7.0 | 40 | 10 | 360 | 3120 | |
| 102 | 7.0 | 40 | 10 | 408 | 3480 | |
| 110 | 7.0 | 40 | 10 | 440 | 3710 | |
| 115 | 7.0 | 40 | 10 | 460 | 3860 | |
| 120 | 8.0 | 40 | 10 | 600 | 5070 | |
| 127 | 8.0 | 40 | 10 | 635 | 5330 | |
| 152 | 8.0 | 40 | 10 | 760 | 6660 | |
| 203 | 9.0 | 40 | 10 | 812 | 9880 | |
| 254 | 9.0 | 40 | 10 | 1270 | 13520 | |
